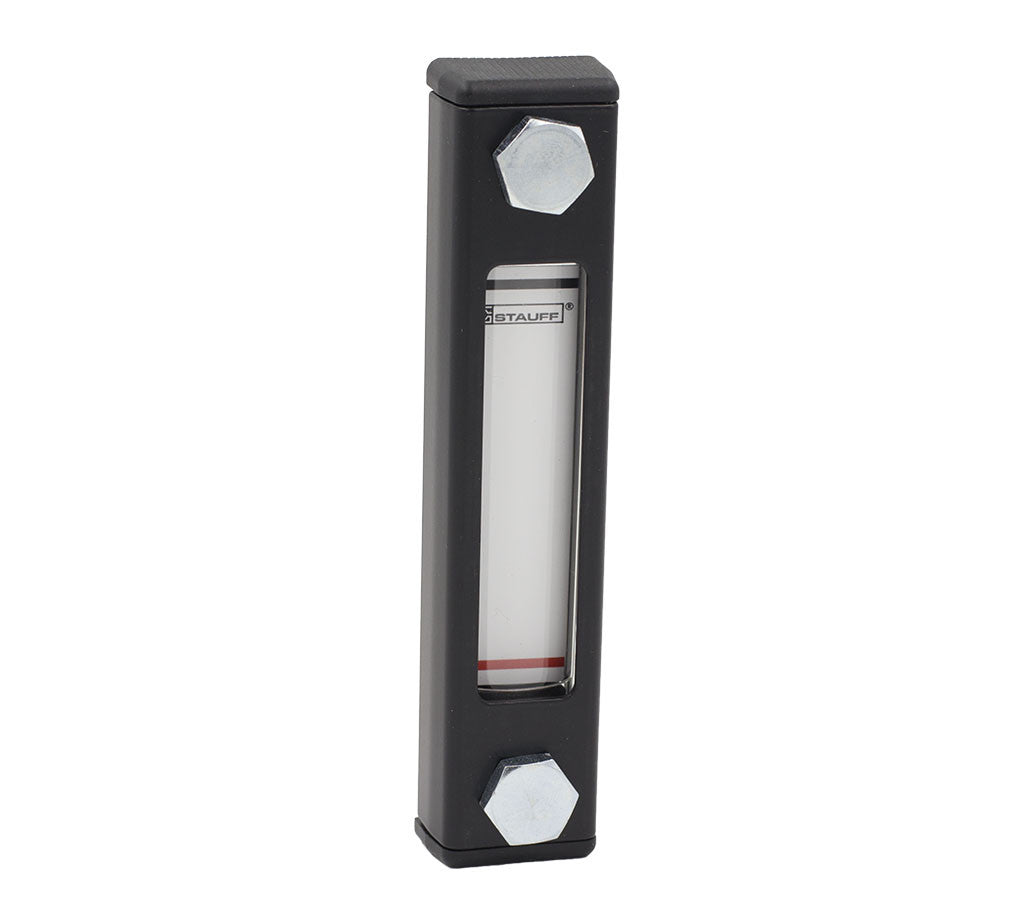

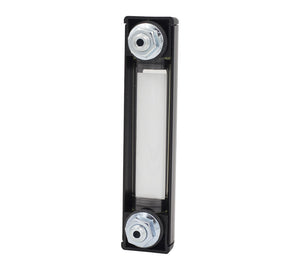

127MM Stauff Level Gauge Without Thermometer

Stauff Level Gauge Type SNA127 without a Thermometer

Part # SNA-127-B-S-O-12

Level Gauge Specifications PDF

Visual fluid level indication in hydraulic reservoirs with maximum tank pressures not exceeding 29PSI

Features

• Nominal Size: 127mm / 5.00"
• Sealing Material: Buna-N
• Design of Scale Plate: With Stauff Logo
• Banjo Bolt Size: Metric ISO thread M12
• Supplied without Thermo Switch/Temperature Sensor
• Thermometer: No Thermometer

 Media Compatibility

• Suitable for use with Mineral and Petroleum based hydraulic fluids (HL and HLP)

 Materials

• Housing made of Steel St 12, black epoxy-coated
• Sight Tube and plugs made of Polyamide
• Sealing material made of NBR (Buna-N)
• Scale Plate made of PVC

Special sight tube materials for improved UV or chemical resistance and use with special media (such as bio-degradable fluids, diesel oils, gasoline, etc) as well as special sealing materials, (Viton) and scale plate materials (aluminum) available upon request

Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff level gauges
