3/4" NPT Flow Control Valve

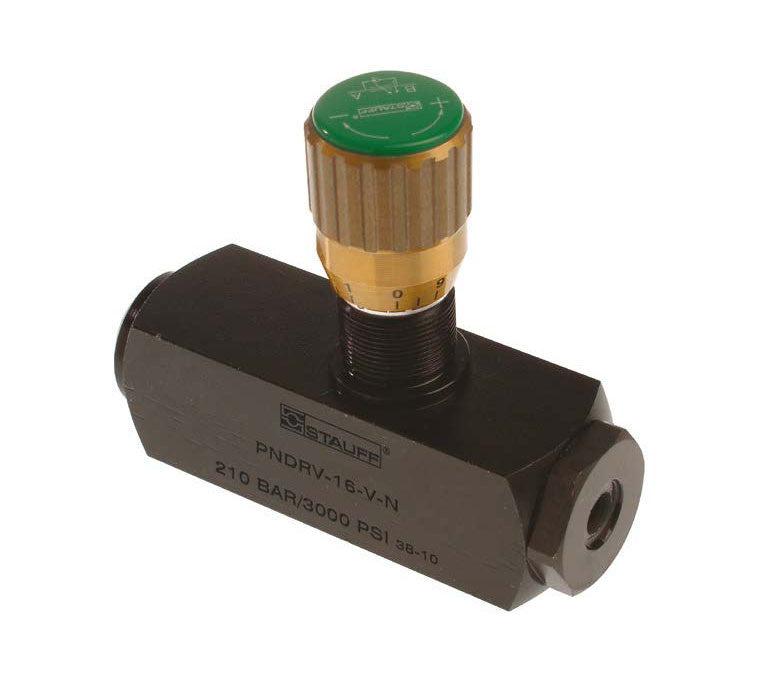

Stauff 3/4" FNPT Pressure Compensated Flow Control Valve

Part # PNDRV-16-V-N

Stauff PNDRV Series Flow Valve Specifications PDF

Throttle and shut-off the flow of liquid media in direction A-B (fee flow in reverse direction) with pressure compensating feature via built in compensating piston

Specifications

• Connection Size: 3/4" FNPT
• Max Pressure: 3000PSI
• Body: steel, phosphated
• Internal Components: Stainless Steel
• Turning Knob: Aluminum
• O-Rings: FPM (Viton)
• Seal Material: FPM (Viton)
• Operating Temperature: -4F to 248F
