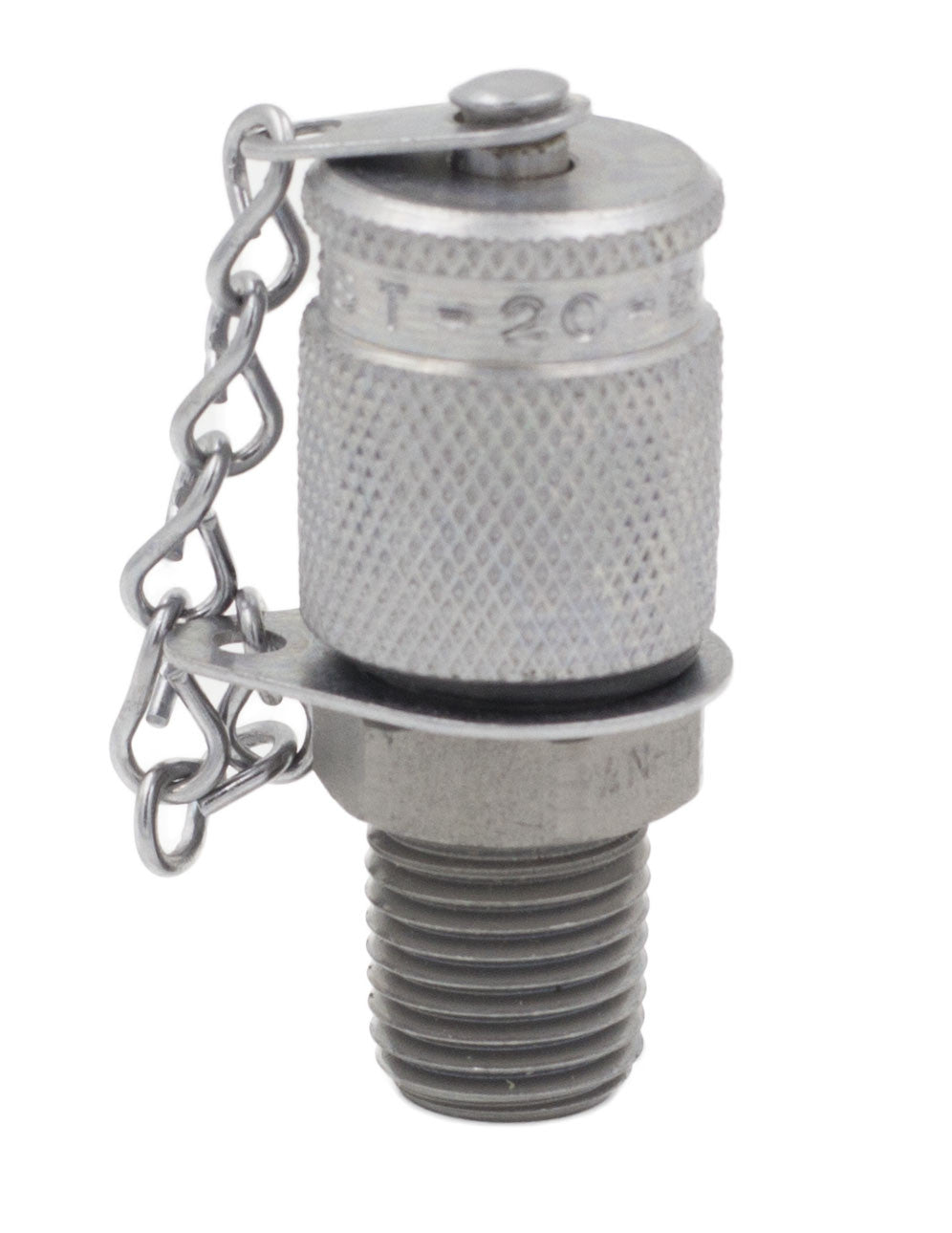

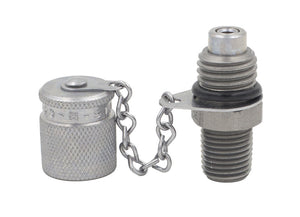

Test 20 x 1/4" NPT Zinc Plated Adapter with Ball Check
New Part # SMK-20-1/4NPT-V-D-W3
Old Part Number: SMK20-1/4NPT-VD-C6F
Stauff Test 20 Fitting Specifications PDF
Specifications
- Thread Connection: Male Test 20 (M16 x 2) x Male 1/4" NPT
- Sealing: Internal sealing made of FPM (Viton)
- Material: Steel, zinc/nickel plated CrVI Free
- Ball: Stainless Steel
- Max Working Pressure: 9137PSI
- Temperature Range: -4F to 392F
Advantages
- Test system at working pressure
- Leak proof connection before ball check is open
- Simple connection to measurement, control and switching devices
- Self locking metal protective cap
Call 1-888-979-0811 or email sales@alabamaindustrialproducts.com with questions about our Stauff test 20 fittings
